Test Block Calibration Kit
We are excited to introduce our new calibrated Test Block Package for NABL Accredited Labs.
- ISO/IEC 17025-2017 & ASTM E18-19 Certified Blocks.
- Package of 51 Calibrated Blocks required for NABL Calibration Lab.
- Option for Customized Package as per requirement.

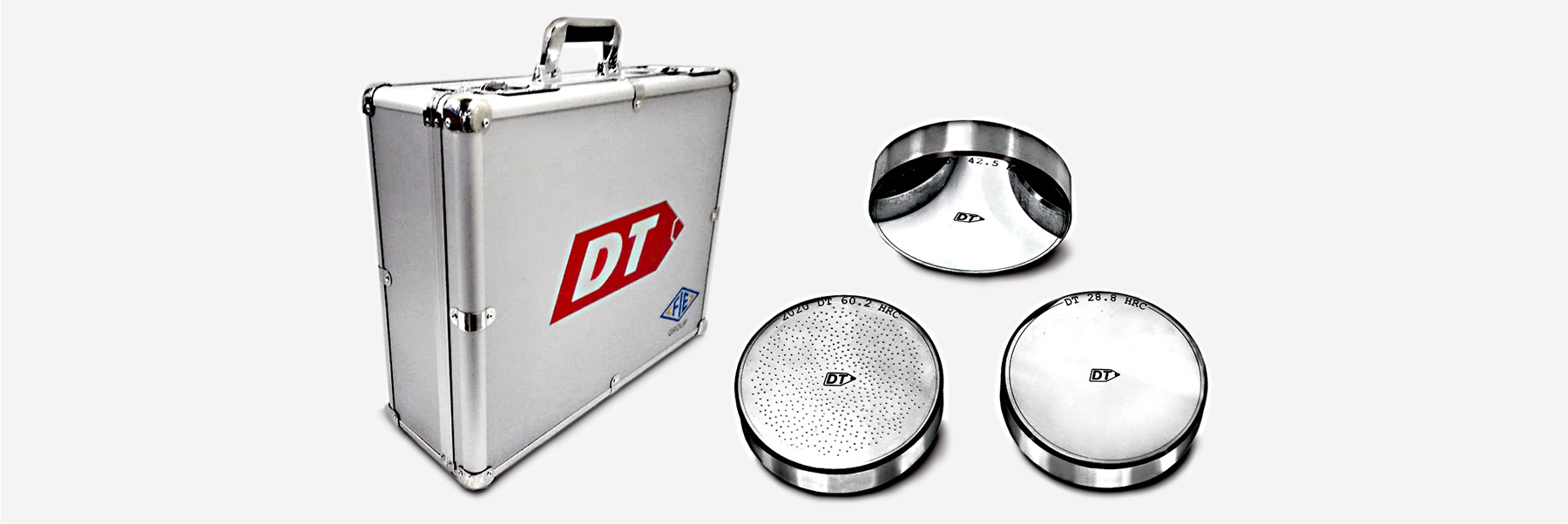

- Packed with a export level briefcase to maintain the standard.
The set includes all scales of STD blocks with Lower/Middle/higher range & calibration certificate as per IS/ISO & ASTM std.
Customized package available as per the accreditation scope of the NABL lab.
STD Hardness Ranges as per IS/ISO & ASTM std.
| Hardness | L/M/H Hardness Ranges as per IS/ISO std | L/M/H Hardness Ranges as per ASTM std |
|---|---|---|
| HRA | 20-40 / 45-75 / 80-83 | <70 / 70-80 / >80 |
| HRB | 20-50 / 60-80 / 85-100 | <60 / 60-88 / >88 |
| HRC | 20-30 / 35-55 / 60-65 | <35 / 35-60 / >60 |
| HR 15 N | 270-77 / 78-88 / 90-92 | <78 / 78-90 / >90 |
| HR 30 N | 42-50 / 55-73 / 77-82 | <55 / 55-77 / >77 |
| HR 45 N | 20-30 / 37-61 / 60-70 | <37 / 37-66 / >66 |
| HR 15 T | 73-80 / 81-87 / 88-93 | <81 / 81-87 / >87 |
| HR 30 T | 43-56 / 57-69 / 70-82 | <57 / 57-70 / >70 |
| HR 45 T | 12-33 / 34-54 / 55-72 | <33 / 33-53 / >53 |
| HV10 | 200-225 / 400-600 / 700-800 | 100-240 / 240-600 / 600-800 |
| HV20 | 200-225 / 400-600 / 700-800 | 100-240 / 240-600 / 600-800 |
| HV30 | 200-225 / 400-600 / 700-800 | 100-240 / 240-600 / 600-800 |
| HV50 | 200-225 / 400-600 / 700-800 | 100-240 / 240-600 / 600-800 |
| HBW 10/3000 | 180-200 / 250-350 / 500-550 | <125 / 125-225 / >225 |
| HBW 5/750 | 180-200 / 250-350 / 500-550 | <125 / 125-225 / >225 |
| HBW 2.5/187.5 | 180-200 / 250-350 / 500-550 | <125 / 125-225 / >225 |
| HBW 5/250 | 180-200 / 250-350 / 500-550 | <125 / 125-225 / >225 |

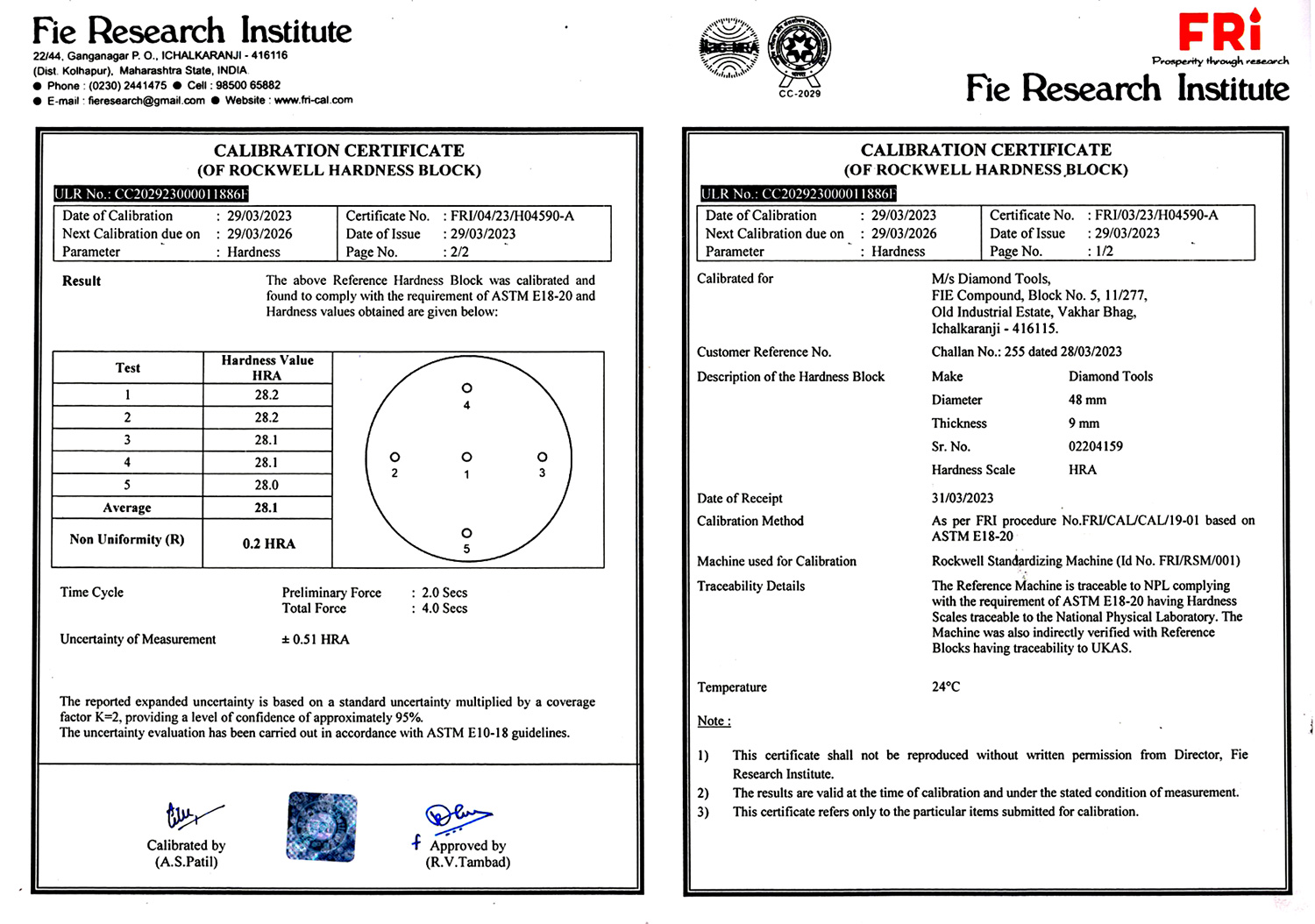

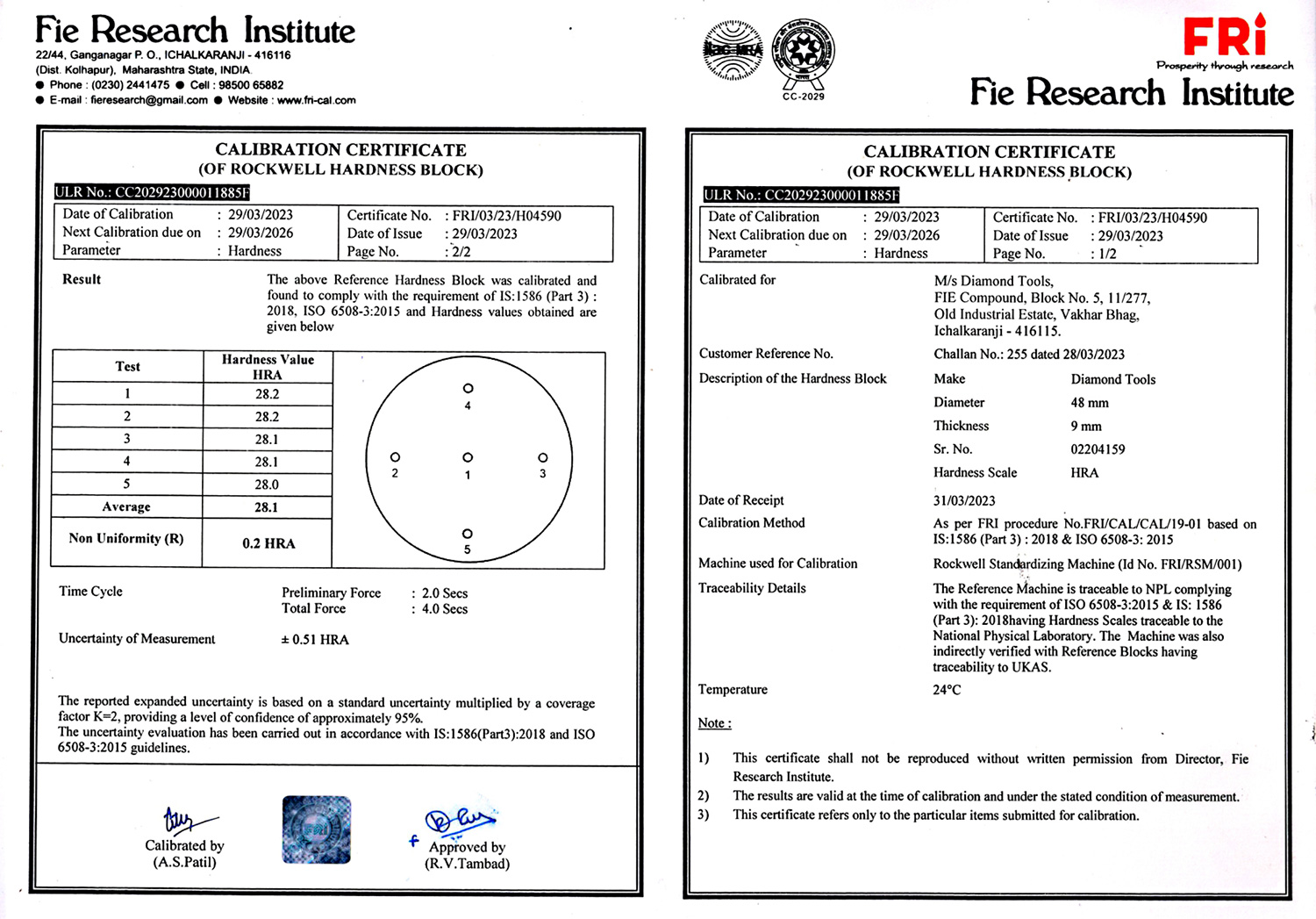

ISO Certificate
